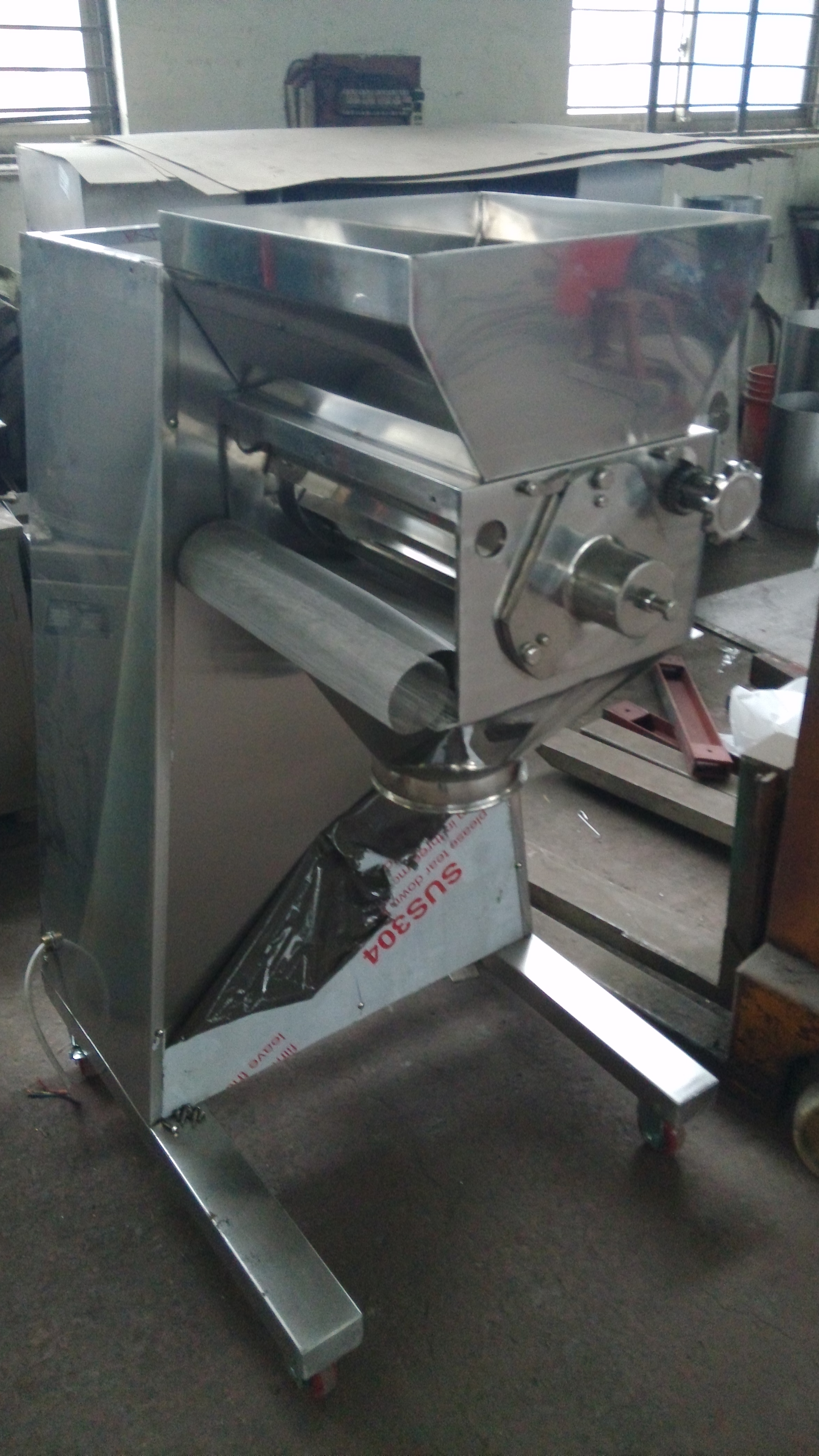

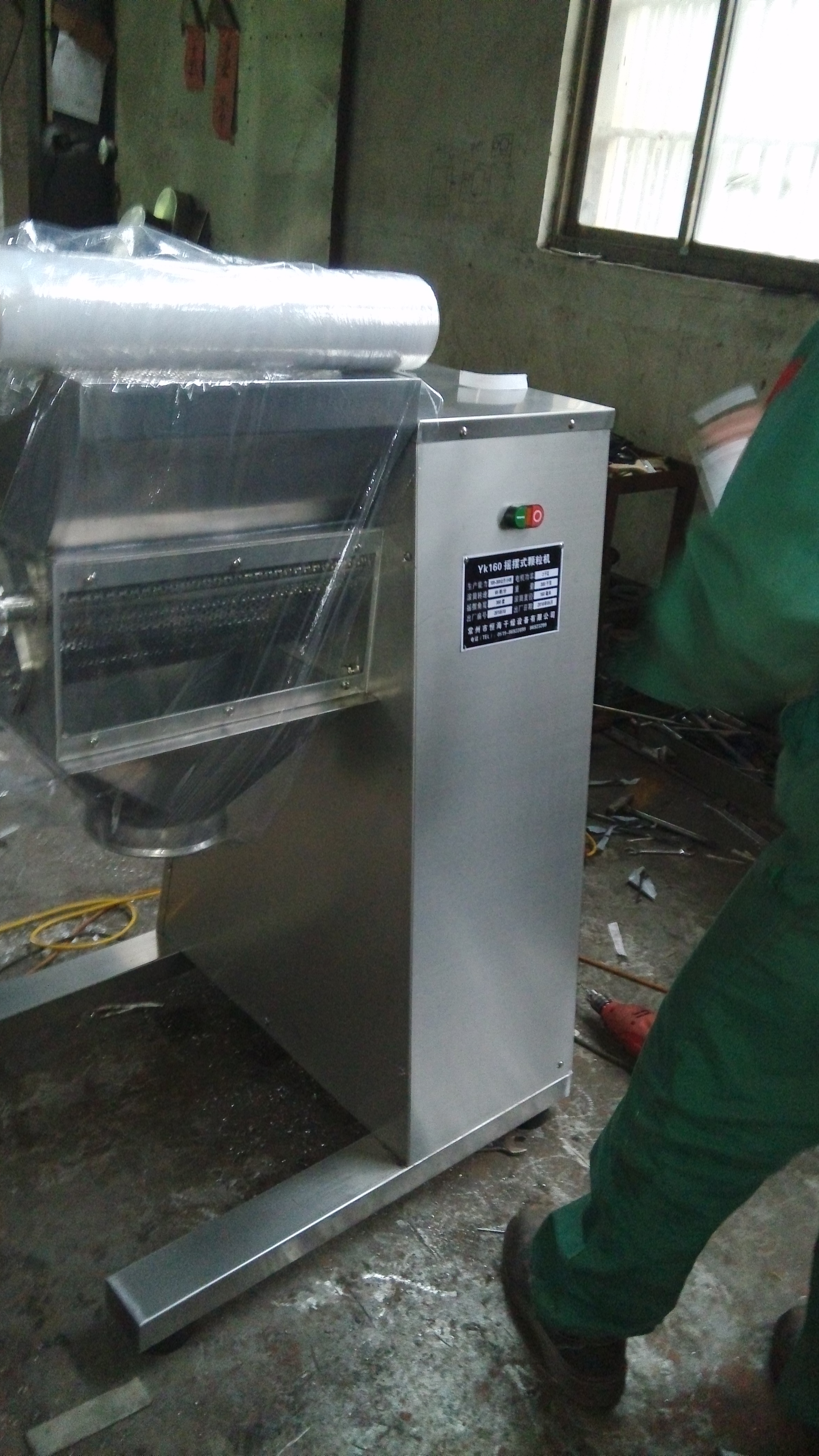

YK160搖擺顆粒機
應用 Application
本機是一種將潮濕粉末狀混合物，在旋轉滾筒的正、反旋轉作用下，強制性通過篩網而制成顆粒的專用設備。C型適合粘度大的物料制成顆料。
該機主要適用于醫藥、化工、食品等工業中制造各種規格的顆粒，烘干后供壓制各種成型制品，該機亦可用于粉碎凝結成塊狀的干料。
物料接觸處均采用不銹鋼材料制作，外型美觀大方，清洗方便，操作簡單，能耗低等優點。
This machine is special equipment. Under the action of clockwise and counterclock wise rotation of roller, damp powder mixture will be forced to pass through sieve and then become granule. Model C is a heavy type and suitable fot raw materials having sticky viscosity.
This machine is mainly suitable for pharmaceutical industry, chemical industry and foodstuff industry to make granule with different specifications. After it is dried through backing, then press it to form all kinds of shaped products. It can also be used for dry block raw material that is crushed and coagulated.
All parts in this machine are made of stainless steel. Its appearance is beauty. Its cleaning is very convenient. Its operation is very simple. Its energy consumption is very low.
-----------------------------------------------------------------------------------------------------------------
技術參數 Technical parameters
| 型號 Model | 生產能力（kg/h） Productive capacity | 電機功率 Power of motor | 滾筒轉速（r/min） Revolution of roller | 轉速 Speed | 搖擺角度（度） Swing angle | 外形尺寸 Overall dimensions | 重量 Weight |
| A型B型 Model A,B | 100-200 | 2.2 | Φ160 | 65 | 360° | 1150×680×1150 | 300 |
| C 型 Model C | 150-300 | 3 | Φ160 | 65 | 360° | 1260×750×1150 | 450 |
